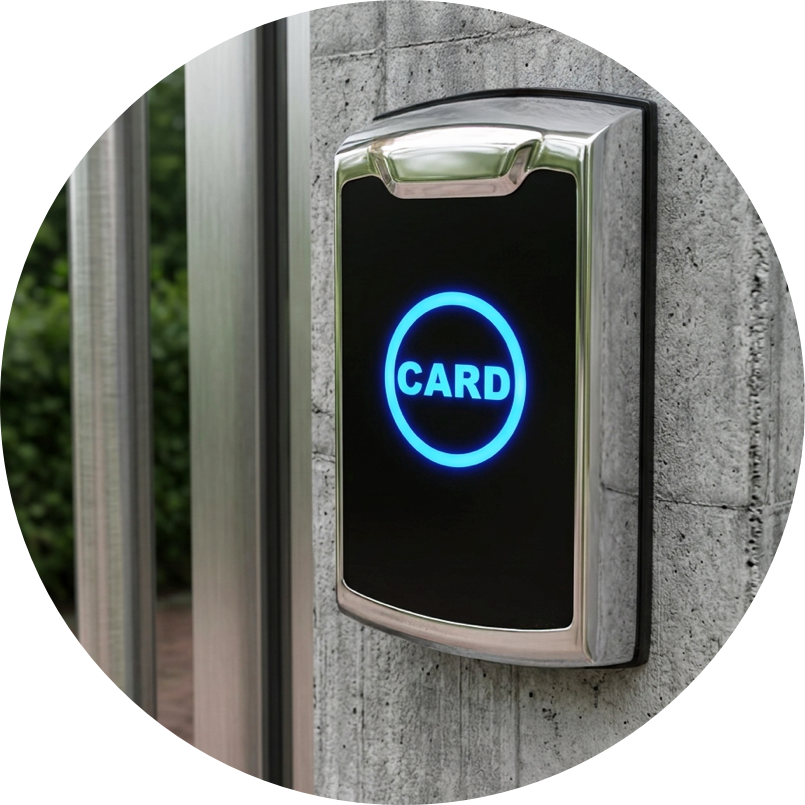

Control access to communal entrances, lifts, gates and shared spaces with TLJ's electronic wall readers.
.png)
TLJ's electronic wall readers bring access control to the spaces where a traditional door lock isn't the right fit. From busy communal entrances and shared facilities to lifts, gates and vehicle barriers, they provide a practical way to manage who can access different areas of your property.
Working with TLJ's access control system, wall readers connect to the relevant control hardware to manage access permissions and coordinate the operation of compatible doors and entry points.
One connected approach
From communal entrances and shared facilities to lifts, gates and vehicle barriers, TLJ wall readers extend access control across the different spaces within your property.
.png)

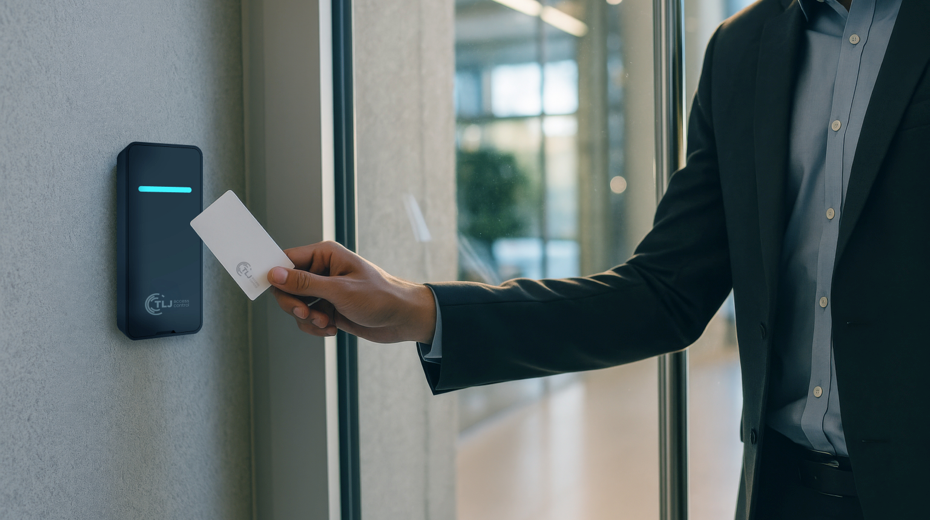

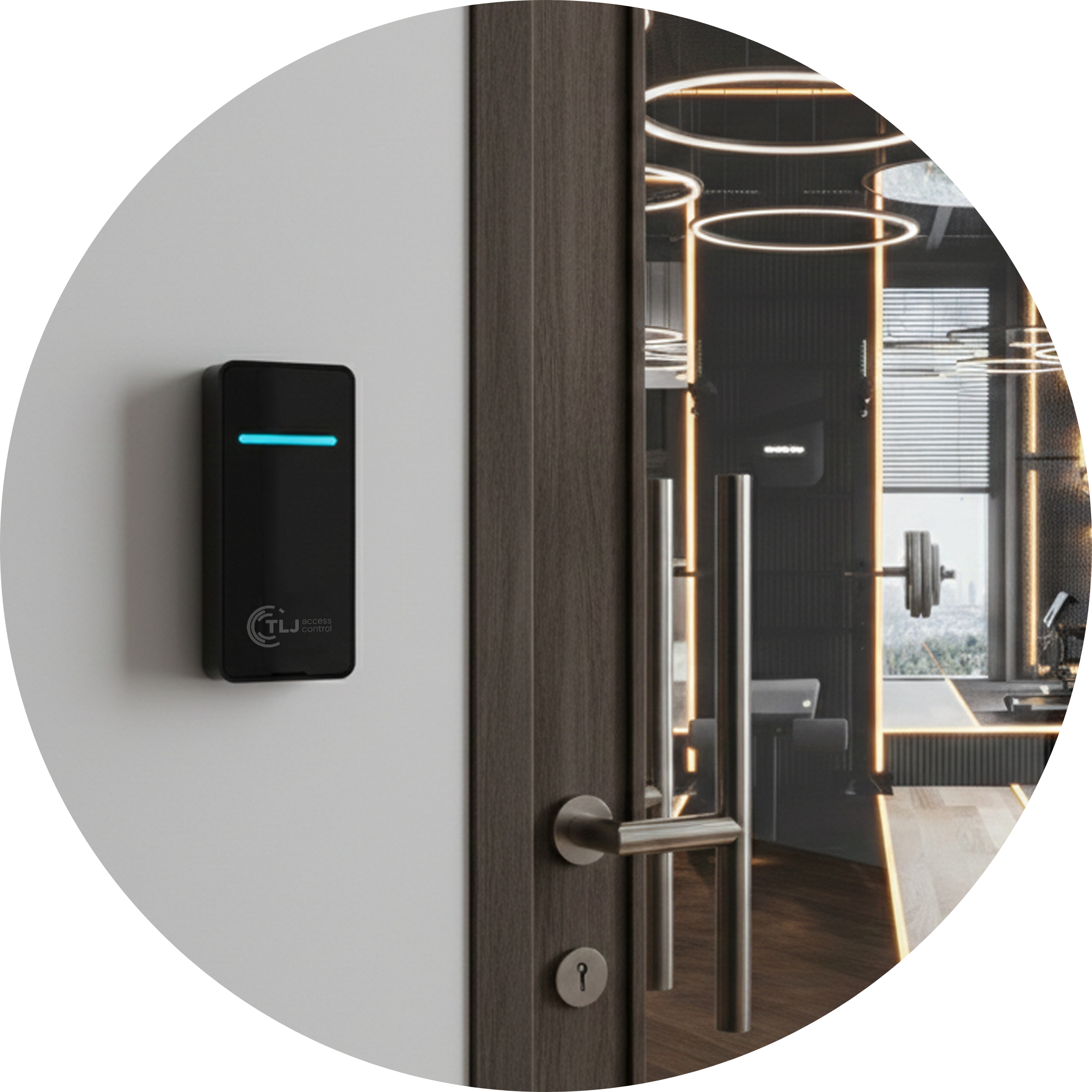

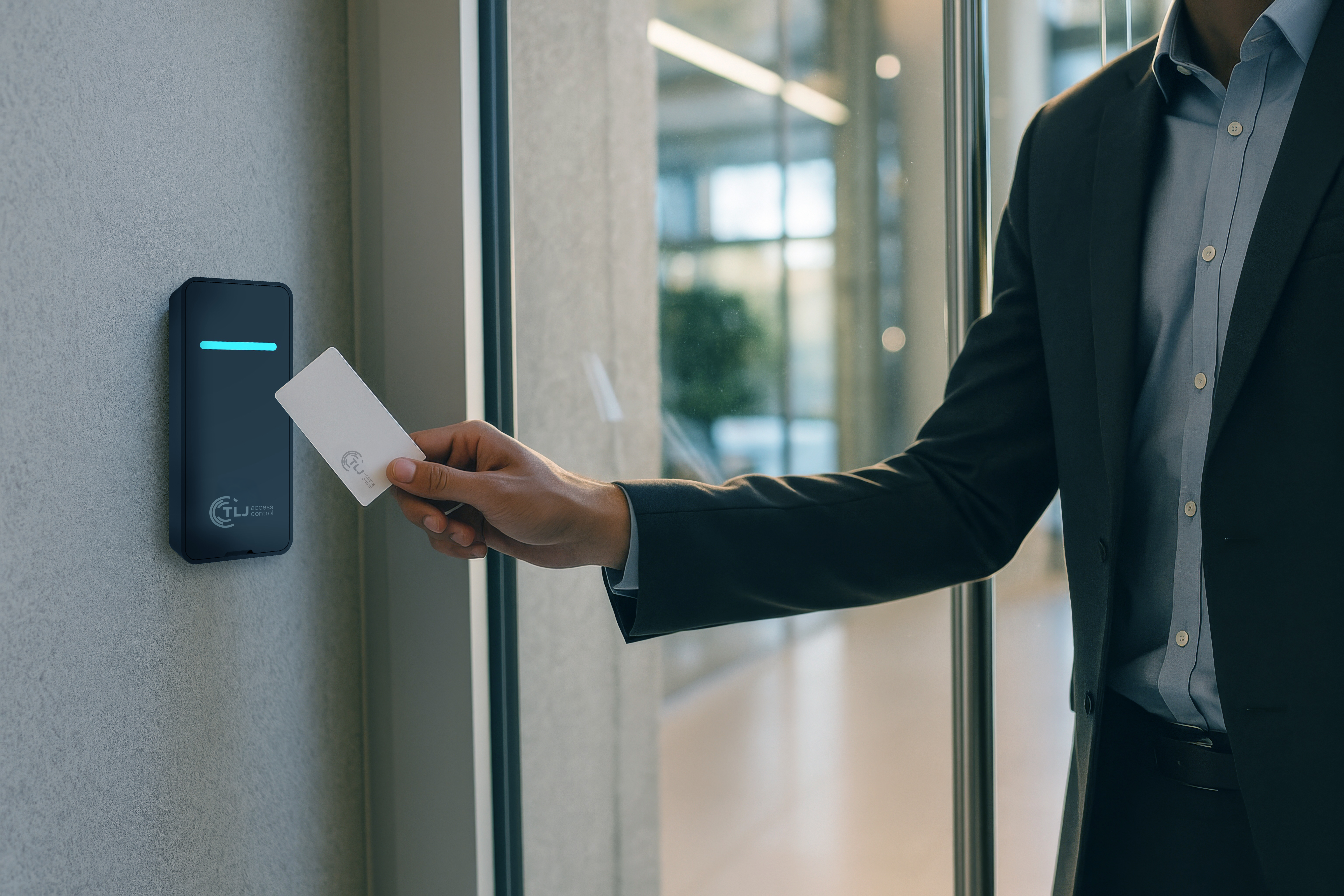

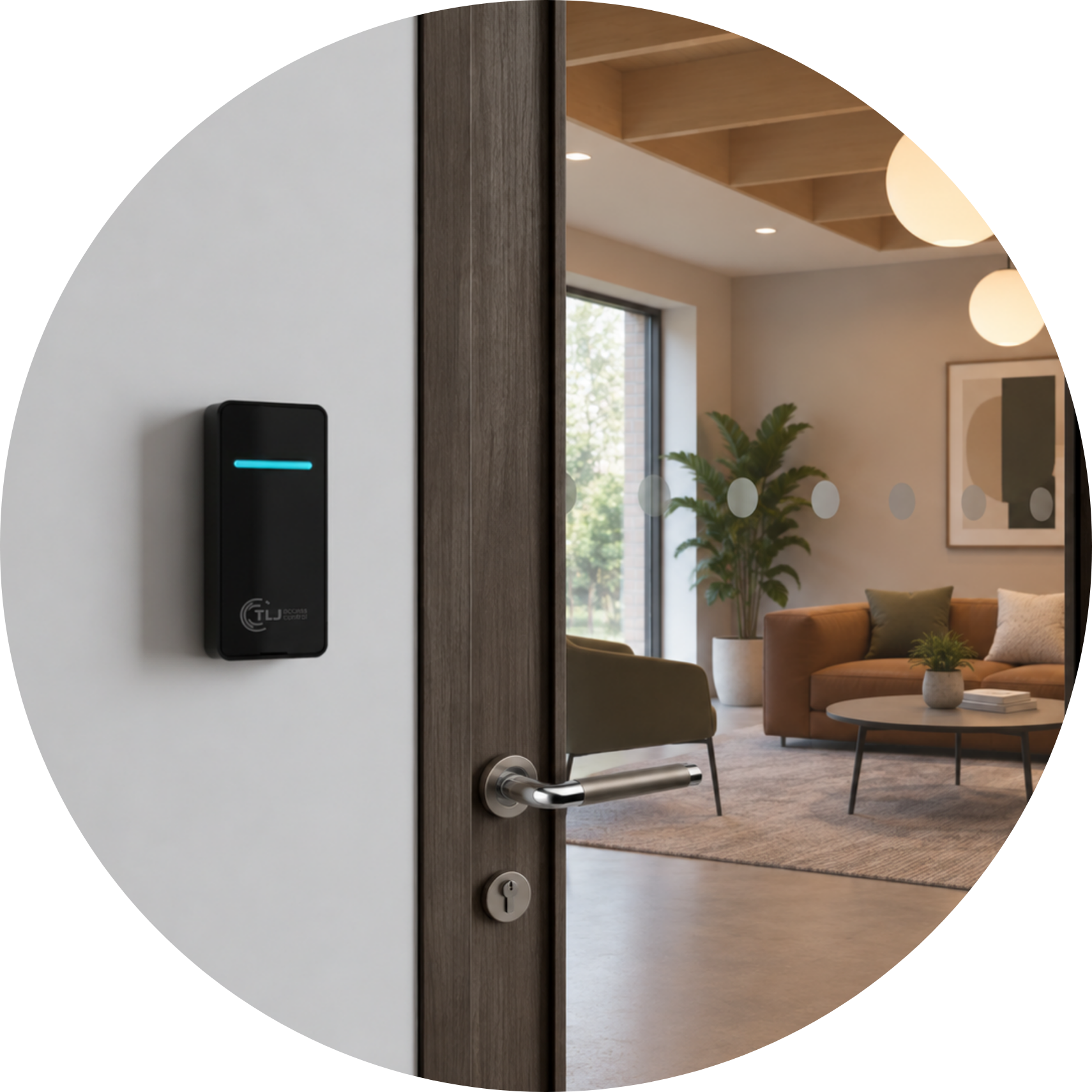

From main entrances and reception areas to communal facilities, TLJ wall readers provide a reliable way to manage access across the shared spaces of a property. They work alongside compatible locking hardware, including magnetic locks and electric strikes, making them particularly suited to busy, frequently used doors.
With access permissions managed through TLJ's wider system, operators can give residents, staff and visitors access to the areas they need, without managing every entrance separately.
.png)
.png)
In multi-storey properties, managing access isn't just about who can enter the building, but where they can go once inside. TLJ wall readers integrate with compatible lift control systems to help manage access to individual floors.
Permissions can be tailored to different users or groups, from residents accessing their designated floors to staff requiring entry to restricted areas. All managed as part of the property's wider access control system.
Car parks, gated entrances and vehicle barriers all play a part in how people move around a property. TLJ wall readers can connect with compatible gate and barrier control equipment, bringing these external access points into the wider access control system.
This gives operators a more joined-up way to manage access across the site, with permissions for external entrances managed alongside those for communal doors and shared facilities.
.png)

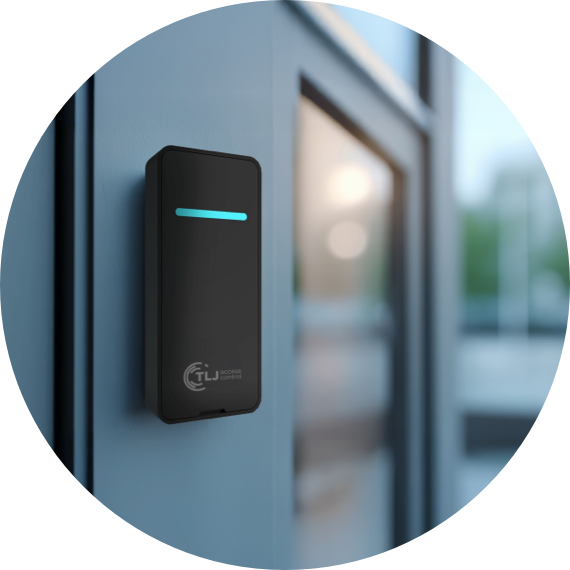

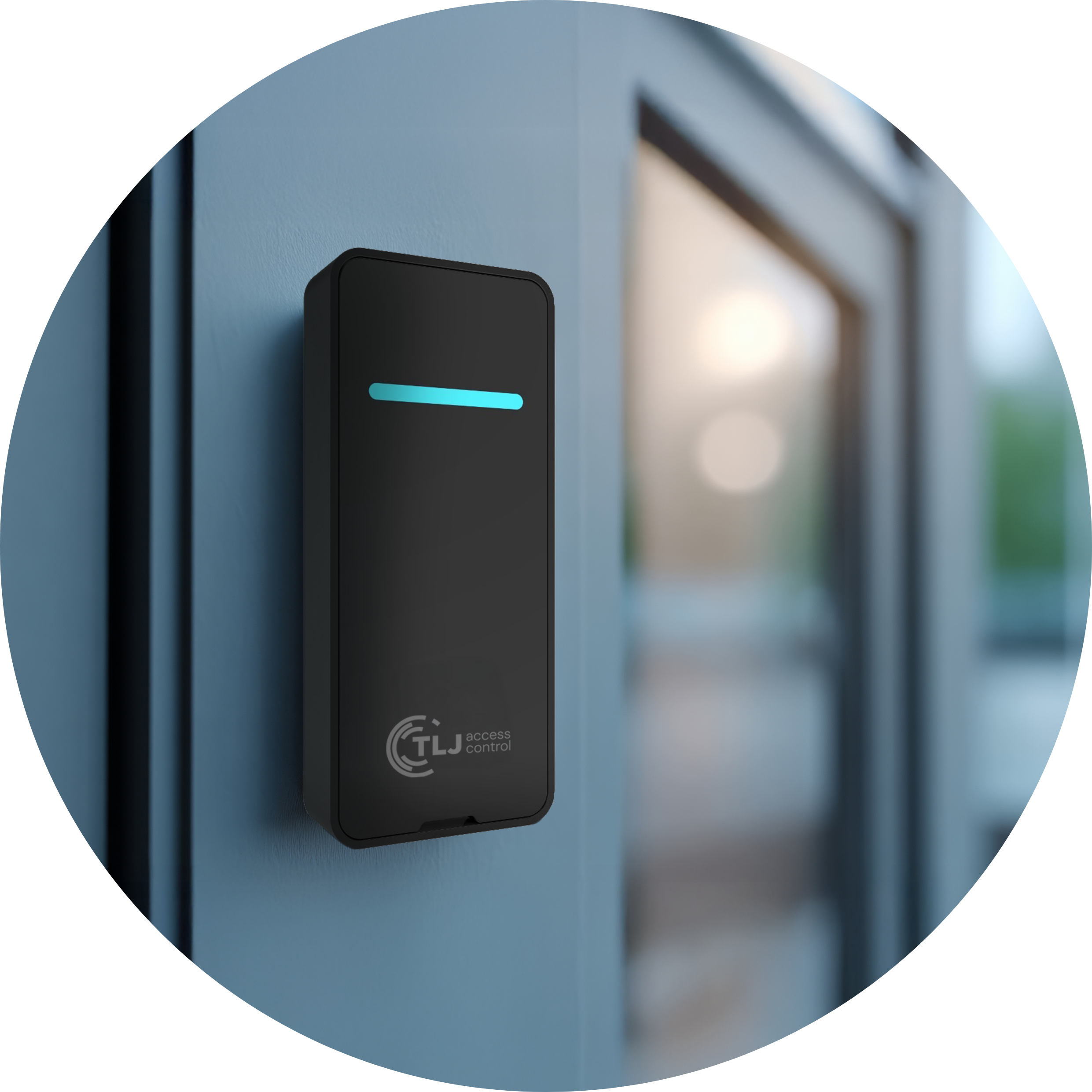

TLJ wall readers connect to a dedicated access controller, providing a hardwired solution for compatible doors and access points.
Designed to work alongside compatible locking equipment, including magnetic locks and electric strikes, for access-controlled entrances.
The access controller operates from a mains supply and includes 12V backup power.
Access permissions can be managed through TLJ's wider access control system, supporting different users and entry points across a property.
Both reader versions are rated IP55 and specified for operating temperatures from -20°C to 70°C, supporting installation in a range of environments.
| Specification | Reader V1 | Reader V2 |
|---|---|---|
| Dimensions | 127 × 74.5 mm | 127 × 74.5 mm |
| Reader power | 12V DC, 0.3A | 12V DC, 0.3A |
| Material | Zinc alloy and polycarbonate | HDPE |
| Finish | Polished chrome | — |
| Mounting | Surface-mounted | Surface-mounted |
| Operating temperature | -20°C to 70°C | -20°C to 70°C |
| IP rating | IP55 | IP55 |
| Controller supply | 230–240V, 50Hz | 230–240V, 50Hz |
| Backup power | 12V backup in controller | 12V backup in controller |
TLJ wall readers can form part of different access management configurations, including Offline (data-on-card), Online and TLJ Connect (writeback) systems.
TLJ's wider access control offering includes physical credentials and Bluetooth Low Energy (BLE) mobile access. Supported credential options depend on the reader and system configuration.
Wall readers work alongside compatible access controllers and locking hardware, and can be incorporated into lift, gate and barrier installations where suitable integrations are available.
Product overview, applications and access management options.

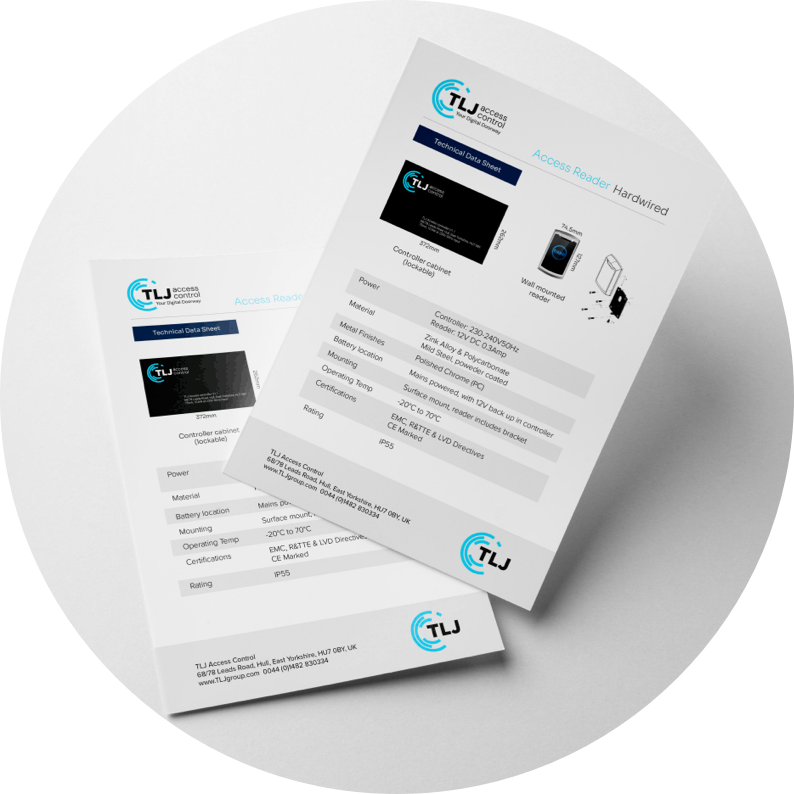

PDF · Product brochureReader dimensions, materials, electrical requirements and environmental ratings.
PDF · Technical specifications★ Trusted by our customers
